BESTASTE ENTERPRISE CORPORATION

Professional Automatic spring roll making machine Manufacturer

  • [email protected]
  • EN

  • THE EXPERTS IN INNOVATIVE SPRING ROLL MACHINERY

Automatic spring roll making machine
● Model: SR-6
● Length of spring roll : 70 mm - 120 mm
 (Before frozen)
● Weight of spring roll : 20 gram - 60 gram
● Size of spring roll pastry :127 mm - 190 mm
● Capacity : 2400 pcs/ hr
Inquiry

Specifications



● Automatic spring roll making machine including :

Pastry baking machine、Spring roll wrapping machine.

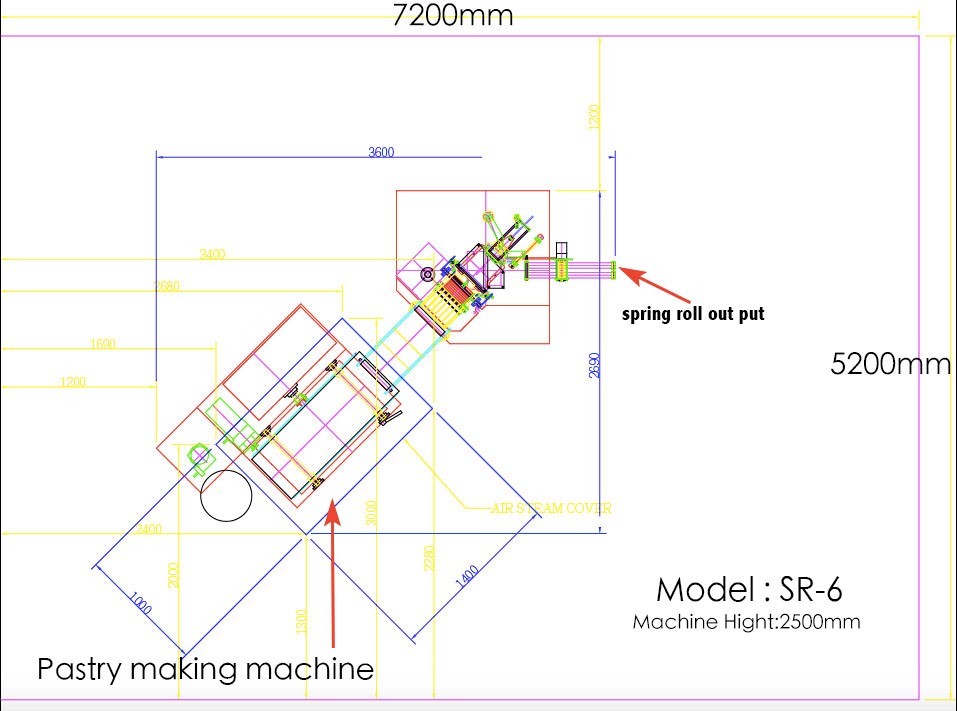

Used Space :



Video

● Spring roll machine / Spring roll production line :





● Spring roll making machine :





● Spring roll making machine

 (Round spring roll) :





Introduction to Automatic spring roll making machine

BESTASTE Features

● Most professional:

BESTASTE focus on spring roll pastry making machine and spring roll making machine to research.

BESTASTE only sell relevant machines in spring roll machine and spring roll wrapper machine.



● Most experienced:

BESTASTE has 33 years of experience in using own machines.

BESTASTE produce spring roll pastry sold in Taiwan for 33 years.
(Other machinery manufacturers do not have the experience.)


● Most complete equipment:

We have spring roll pastry production line to produce spring roll pastry and wholesale in Taiwan.

Welcome to visit at any time.


● Most high quality:

We not only care about the quality of spring roll wrapper machine, but also care about the spring roll wrapper making machine to produce the high quality of spring roll pastry and the durability of the machine.

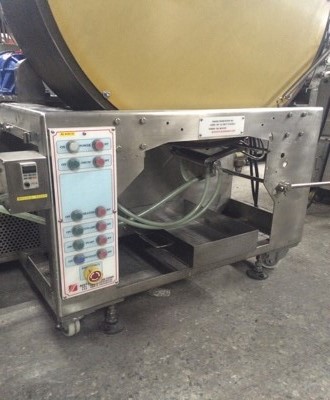

Spring roll pastry making machine ’s Features


● Produce more crisp spring roll pastry :
Rough surface or Smooth surface of drum can choose.

 Rough surface of the spring roll pastry has dense pores and more crispy after fired.



 Smooth surface of the spring roll pastry can produce thinnest thickness pastry 0.2 mm.
With international patents.


● Produce
 more flexible spring roll pastry :

☆ If Spring roll pastry doesn’t have flexibility, spring roll pastry will crack when frozen.


● Increase
spring roll pastry machine use life :

◎ Increase Baking drum life 200%

◎ Use life can be more than 20 years

◎ Increase the electric heater life 500%

☆ (If not use specially process to make, about 3 - 6 months the electric heating piece will to be damage )



 100% Stainless steel of machine frame :

Machine frame is 100% of the use of 5 mm and 10 mm thick stainless steel plate to produce. (Meets U.S.A FDA standard

☆ Other manufacturers use the medium-carbon steel (S45C),  and then wrapped in a layer of stainless steel sheet on the outside, but which will still rust.

(Not meet the U.S.A FDA standard.)

☆ Or use too thin stainless steel plate, it's easy to deformation when used 6 months.



 Have energy-saving effect
Heat conduct to surface of drum efficiency.

Why saving?

☆ (If heat is not conduct efficiency, heater will continuous supply power, and easily damaged.)
Use Sturdy and durable materials :

We use special insulation board, the heat is not lost and have energy-saving effect, the outer cover will not be broken

☆ (Not bakelite board, bakelite board will be broken.)


● Machine is
 high-safety and the failure rate is low

 Inside the baking drum are used high temperature resistant material.

◎ Use hydraulic clamp to fixed to ensure safety.

☆ Many manufacturers use nickel-plated copper cables to reduce costs. the connection between the cables and terminals may easily break after long-time use.



 High-quality and renowned machine parts :

a. Motor use German brandSIEMENS

b. Electronic components use the Japanese brand :

Fuji Electric (Earth Leakage Circuit Breaker、solenoid valve.)

Omron (Temperature Controller)

BESTASTE are using international brands to ensure quality.


● Easy to Repair
:

◎ Use General Electricity Distribution SystemGeneral electricians have a way to deal with, maintenance is simple.

◎ Electronic parts are easily for purchase.

◎ Not to use PLCGeneral electricians can’t have a way to deal with.

 Easy to operateAny control with numerical display.

The variable frequency drive (VFD) shown in the figure is used to control the speed of the baking drum, batter (flour) outlet, and cooling conveyor.



BESTASTE advantage :

◎ Professional spring roll pastry machine manufacturers.

◎ More than 33 years experience in producing machines and spring roll pastry.

(Other food machine manufacturers does not have these.)

◎ Customers repurchase rate 100%.

◎ Meet the CE & FDA & CSA certification.

◎ Quality is our priority.

Spring roll wrapping making machine ’s Features :

● The shape of spring roll :

According to customer’s inquiry.

We have round spring roll making machine or flat spring roll making machine two model to offer customer to choose.


●
Round shape of spring roll :

Spring rolls can be round and tight, the taste is not crisp but more solid feeling. And the appearance is beautiful.





Flat shape of spring roll :

Flat spring rolls, the taste is more crisp than the round spring rolls, and the machine out of the crisp feeling, is difficult to produce by hand.





(Other spring roll wrapping machine,  only can do round and tight spring rolls.)



● The yield rate of the production line is high up to 999 ‰ :



The design of the machine is uses the mechanical movement to achieve the composition of the wrap spring rolls, not use many electronic parts to complete.

Our spring roll making machine all of the mechanical movements are using the same motor,

Each action is continuous without mistake; the error rate can be within 1 ‰ in a long time work.

And other spring roll machine (We called that is type of conveyor belt of spring roll wrapping machine.), is composed of many pneumatic cylinders and sensers, the conveyor belt will be contaminated with oil, will cause the failure rate will be more and more, or can not scroll spring rolls in work to long time.



 Advantage :

 Can be washed directly with water.

 Low failure rate :
Water vapor can cause damage to electronic parts. Our spring roll machine uses a motor to complete wrapping spring rolls,
will not have this problem.

 The machine area is smaller than the type of conveyor belt of spring roll wrapping machine.



 The filling system is different :
 Filling system and the action of the package spring rolls are mandatory, the location of fillings fixed in the same position in the spring roll pastry will not be biased, if that deviation, the package out of the spring roll shape will be different.

 Use a good filling system, the weight of each spring rolls within ± 5%.

 Spring rolls of the stuffing and the spring roll pastry contains oil, when spring roll wrapping machine start after a long time, the oil will be stick to the machine.

The type of conveyor belt of spring roll wrapping machine, will be mistake when the oil is stick to the conveyor belt. And our machine is using a mandatory action, even if there have oil stick to the machine will not mistake.

So when the customer comes to our company to test the machine, we hope that when the guests in the comparison machine must be a long time to test.

You must test machine be a long time before you can compare the advantages and disadvantages of the machine.

 BESTASTE’s spring roll making machine, regardless of the spring roll pastry of the soft, hard, thick or thin can be successfully produced.

but the type of conveyor belt of spring roll wrapping machine, the skin must be soft, thick to match the machine can be produce.

spring roll pastry produced thick and soft, spring roll will be crack when frozen for a long time. (because there is no flexibility.)

and the skin is too thick also affect the taste.

 spring roll making machine and spring roll pastry machine is the same, are 100% stainless steel (SUS 304) production, internal parts are also, do not worry they rust.



 Automatic spring roll making machine production processing :
 Pour the batter into the spring roll pastry making machine.

 Wait for the spring roll pastry to produce, and take the spring roll pastry to the automatic spring roll making machine.

 Automatic spring roll making machine can automatically take the pastry to the machine, and cut the size of customer needs.

 Then put the filling on the pastry, then the semi-finished spring rolls sent to the machine to wrap spring roll folded and rolled.

◎ After rolled, then put out of the spring rolls.






Inquiry
We are the leading machine brand in Taiwan.

Attention Before Buying

1. Please do not base any purchase and orders on beautifully trimmed videos or user manuals, advertising or the introduction from salesmen. Please make sure you have personally tested the machine at the factory for more than 1 hour in order to test the stability of the machines and product yield.
2. There are many different kinds of food machinery, each with its own characteristic and specialty. Whatever kind of machine you are looking for, in order to have a satisfying purchase, be sure to look for professional factories of that machine with a long history and abundant experience, just like the difference between a professional and amateur baseball player. In addition, it is impossible for a factory to specialize in more than two kinds of machine, just as it is unheard of for an athlete to be a professional in two sports. Therefore, be cautious when choosing the manufacturing plant in order to avoid a displeasing purchase. We are the most professional factory in the world that specializes in spring roll wrappers, and deserve your one-hundred-percent trust.
